Hardware reference

Tech specs for every offering

Full technical specifications for the cloud gateways, Wi‑Fi 7 access points, and backup paths DynaLake deploys — presented in our styling so you can evaluate Standard, Enterprise, and Datacenter tiers without leaving the site.

Jump to Cloud Gateway MaxDream Machine ProEnterprise Firewall CoreU7 LiteU7 Outdoor5G BackupStarlink Standard

Gateway comparison

Pick the right tier at a glance

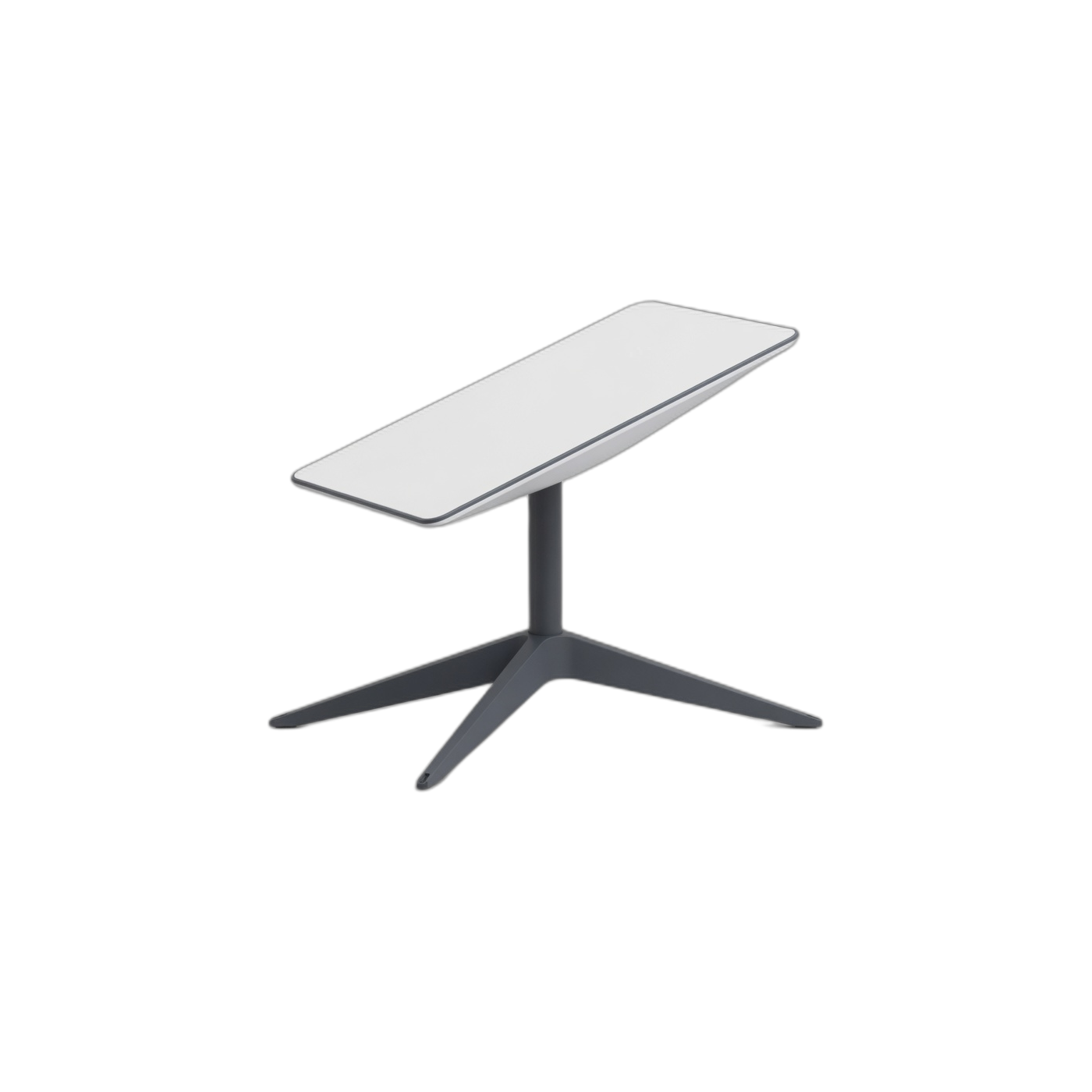

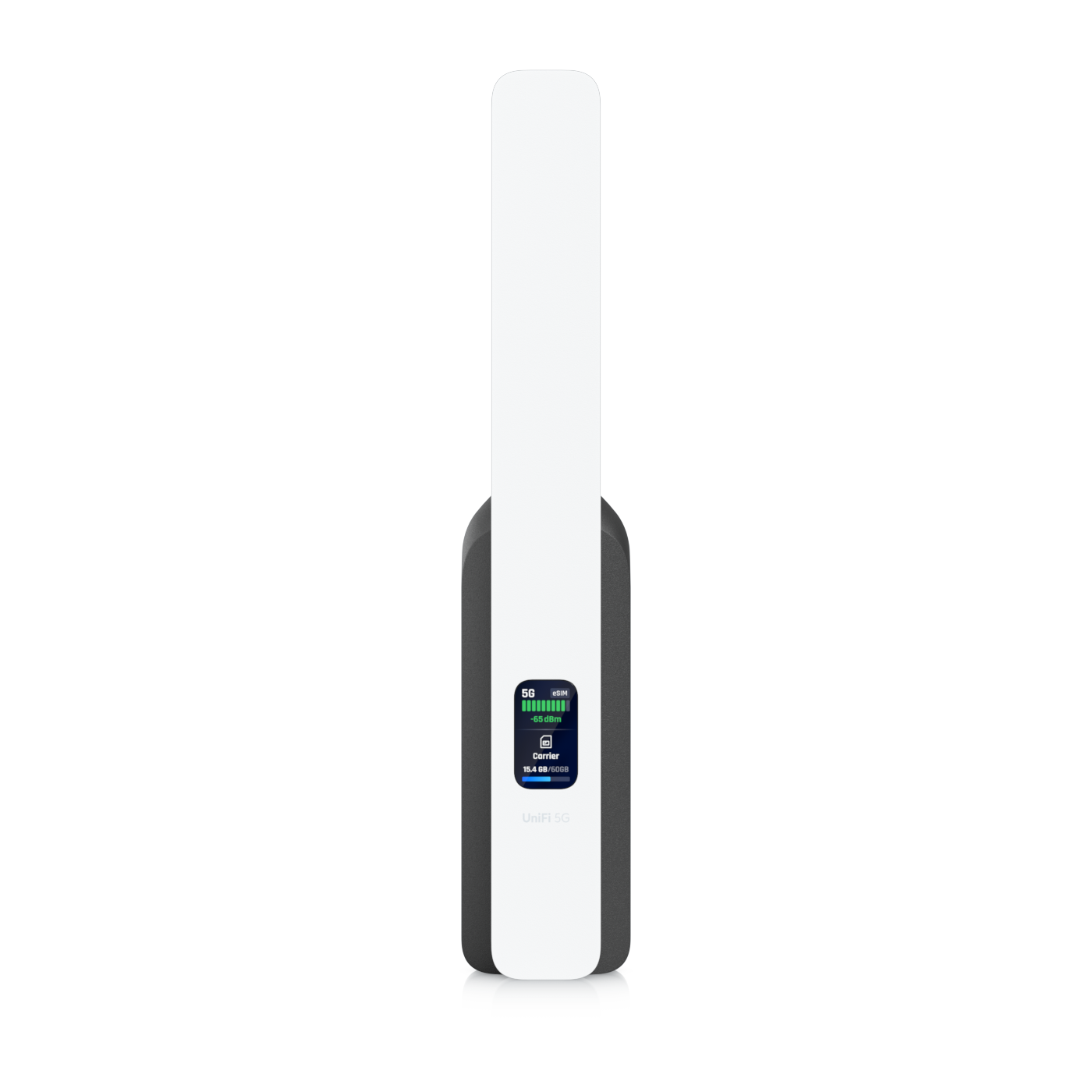

All three gateways support multi-WAN failover and can add 5G Backup, Starlink, or both as independent paths.

Capability Cloud Gateway MaxStandard Dream Machine ProEnterprise Enterprise Firewall CoreDatacenter / HA
Form factorDesktop compact1U rack1U rack
Simultaneous users300+1,000+22,500+
Managed network devices30+100+2,250+
IDS/IPS throughput2.3 Gbps3.5 Gbps79 Gbps
Max WAN ports488
Default WAN(1) 2.5 GbE RJ45(1) 10G SFP+ · (1) GbE RJ45(1) 100G QSFP28 · (1) 25G SFP28 · (1) 10 GbE
High availabilityMulti-WAN failoverShadow Mode (VRRP) + multi-WANShadow Mode (VRRP) · dual hot-swap PSUs
5G / Starlink backupSupportedSupportedSupported

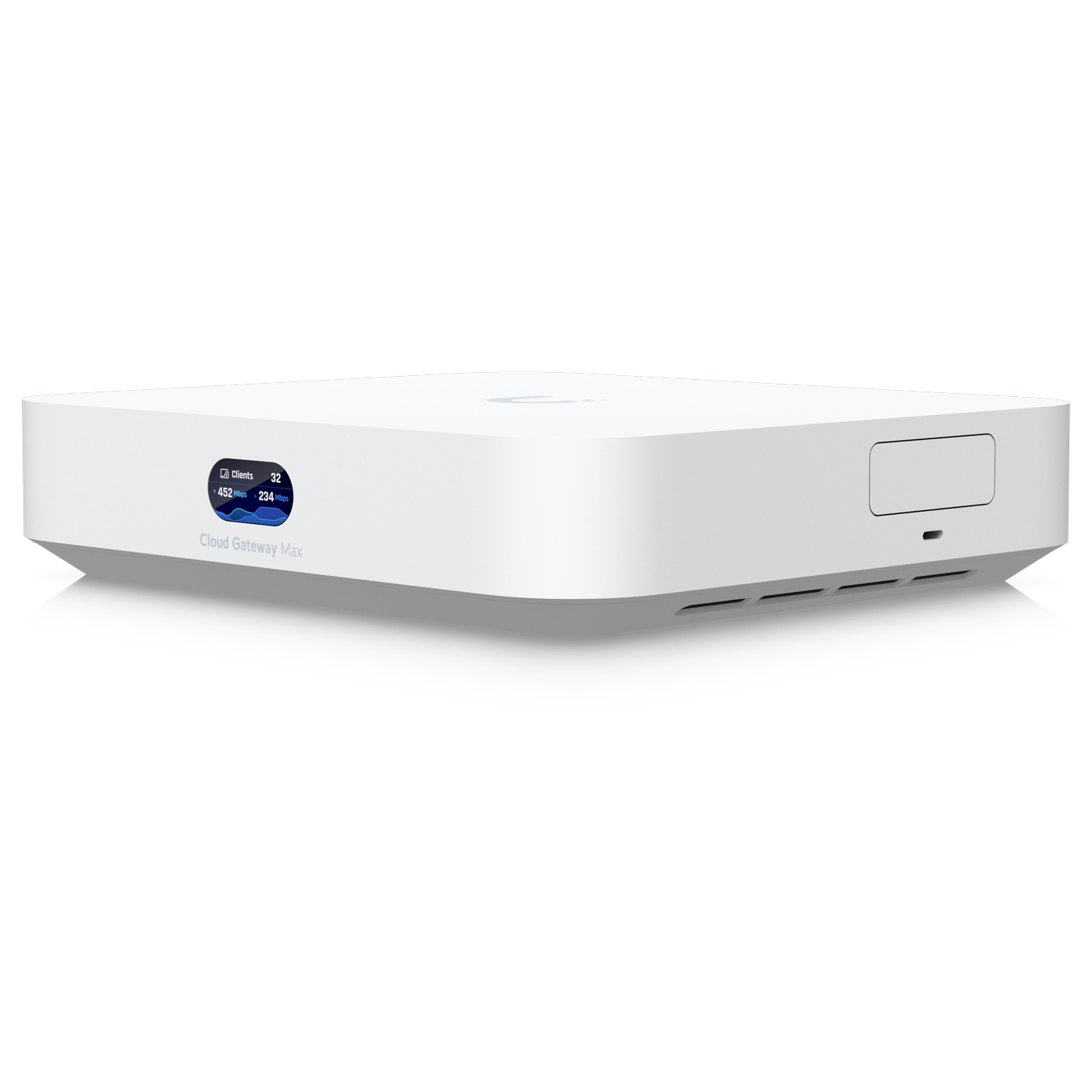

Cloud Gateway Max

Standard

Cloud Gateway Max

UCG-Max · Standard offering

Compact cloud gateway for branches, retail, and professional offices — multi-WAN ready with optional 5G and Starlink backup.

Specs summarized for DynaLake offerings. Hardware capabilities are manufacturer-published; package design and failover policy are configured by DynaLake.

Overview

Dimensions
141.8 x 127.6 x 30 mm
(5.6 x 5 x 1.2")
Network
Yes
Protect
Yes
Access
Yes
Talk
Yes
Connect
Yes
Managed network devices
30+
Managed Cameras
(15) HD
(8) 2K
(5) 4K
Managed Access Hubs
50
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 2.5 GbE RJ45
2.5 GbE RJ45
5
(2.5G/1G/100M/10M)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop

Security

Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes

VPN & SD-WAN

License-Free SD-WAN
Yes
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
L2TP
Yes

Networking

Multi-WAN Load Balancing
Yes
OSPF
Yes
BGP
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Virtual Network Override
Yes
All Traffic Flows
Yes

Hardware

NVR Storage
Selectable NVMe SSD up to 2 TB
Max. Power Consumption
16.1W
Power Method
USB Type-C (5V DC/5A)
Power Supply
USB Type-C (5V DC/5A) (Adapter included)
Supported Voltage Range
100–240V AC
Heat Dissipation
55 BTU/hr
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
Without SSD: 460 g (1 lb)
With SSD: 519 g (1.1 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet
Bluetooth
Ethernet
Yes
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, Anatel: 09004-24-08356, SRRC

Software

Mobile App
iOS™ and Android™: Version 10.17.2 and later

↑ Back to top · View offerings

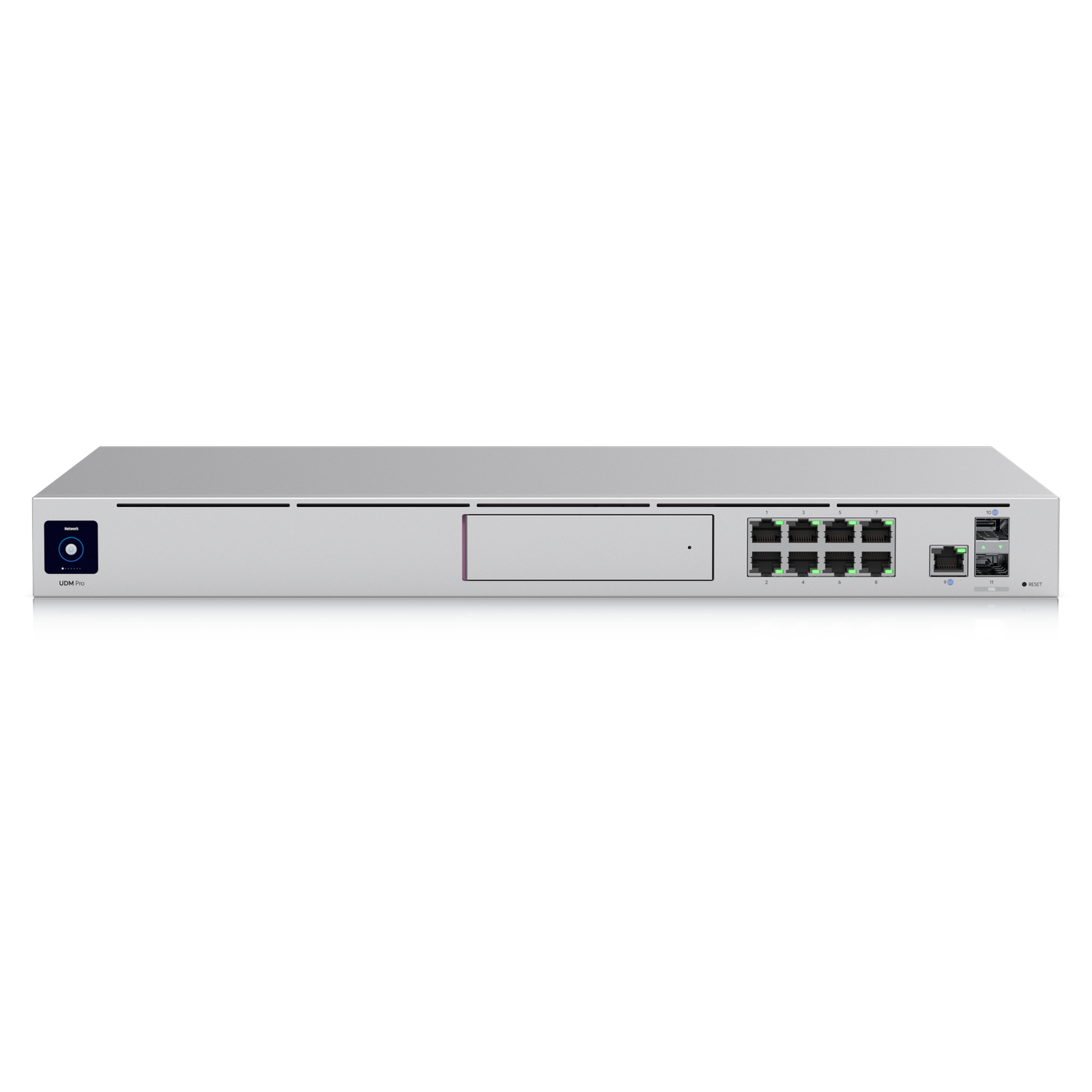

Dream Machine Pro

Enterprise

Dream Machine Pro

UDM-Pro · Enterprise offering

Rack-mount gateway for larger offices and campuses, with Shadow Mode high availability and room to grow the network stack.

Specs summarized for DynaLake offerings. Hardware capabilities are manufacturer-published; package design and failover policy are configured by DynaLake.

Overview

Dimensions
442.4 x 43.7 x 285.6 mm
(17.4 x 1.7 x 11.2")
Network
Yes
Protect
Yes
Access
Yes
Talk
Yes
Connect
Yes
Managed network devices
100+
Managed Cameras
(24) HD
(14) 2K
(8) 4K
Managed Access Hubs
150
Simultaneous Users Connected
1,000+
Max. WAN Port Count
8
Default WAN Ports
(1) 10G SFP+
(1) GbE RJ45
1 GbE RJ45
9
(1G/100M/10M)
10G SFP+
2
(10G/1G)
IDS/IPS Throughput
3.5 Gbps
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
DC Power Backup

Security

Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
55,000+
with CyberSecure
VLAN/Subnet-based Traffic Segmentation
Yes

VPN & SD-WAN

License-Free SD-WAN
Yes
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
L2TP
Yes

Networking

Multi-WAN Load Balancing
Yes
Shadow Mode (VRRP) High Availability
Yes
LACP Port Aggregation
Yes
OSPF
Yes
BGP
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
4,000
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
Virtual Network Override
Yes
All Traffic Flows
Yes

Hardware

NVR Storage
(1) 3.5" NVR HDD bay
Max. Power Consumption
33W
Power Method
(1) Universal AC input, 100–240V AC, 50/60 Hz
(1) USP-RPS DC input
Power Supply
AC/DC, internal, 50W
Supported Voltage Range
100–240V AC
Heat Dissipation
112 BTU/hr
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
System Memory
4 GB
On-board Storage
16 GB
Weight
3.9 kg (8.6 lb)
Enclosure Material
Aluminum CNC, SGCC steel
Mount Material
SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet
Bluetooth
Ethernet
Yes
SFP+
Yes
RPS
Yes
PSU
Yes
HDD
Yes
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC, Anatel: 01136-20-08356, SRRC

↑ Back to top · View offerings

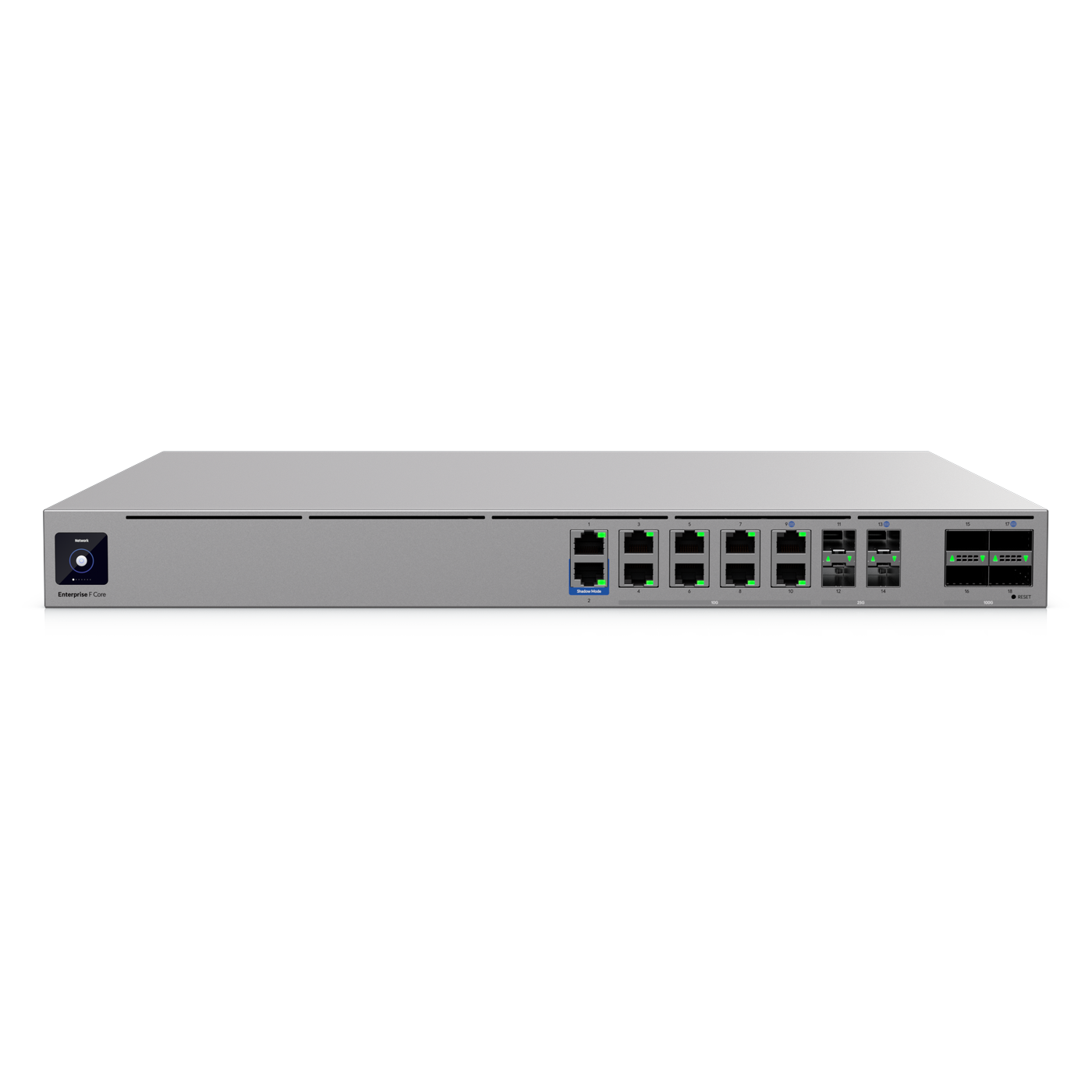

Enterprise Firewall Core

Datacenter / HA

Enterprise Firewall Core

EF-Core · Datacenter & high-availability offering

Enterprise-scale firewall and gateway for datacenter edges — multi-gig and 100G options with dual hot-swap PSUs.

Specs summarized for DynaLake offerings. Hardware capabilities are manufacturer-published; package design and failover policy are configured by DynaLake.

Overview

Dimensions
442.4 x 43.7 x 400 mm
(17.4 x 1.7 x 15.8")
Network
Yes
Managed network devices
2,250+
Simultaneous Users Connected
22,500+
Max. WAN Port Count
8
Default WAN Ports
(1) 100G QSFP28
(1) 25G SFP28
(1) 10 GbE RJ45
1 GbE RJ45
2
(1G/100M/10M)
10 GbE RJ45
8
(10G/5G/2.5G/1G/100M)
25G SFP28
4
(25G/10G/1G)
100G QSFP28
4
(100G/40G)
MGMT
1
(1G/100M/10M)
Console
1
IDS/IPS Throughput
79 Gbps
SSL/TLS Inspection Concurrent Sessions
10,000
Concurrent Sessions
10 Million
New Sessions / Second
120,000
Form Factor
Rack mount (1U)
Redundancy
Shadow Mode (VRRP) Gateway Failover
(2) Hot-Swappable PSUs

Security

Stateful Firewall
Yes
Application-Aware Layer 7 Firewall
Yes
SSL Inspection & URL Filtering
Yes
DPI & Traffic Identification
Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
Yes
Content Filtering
Yes
Intrusion Prevention (IPS/IDS)
Yes
Ad Blocking
Yes
IDS/IPS Signatures
95,000+ with CyberSecure Enterprise

VPN & SD-WAN

License-Free SD-WAN
Yes
Site Magic
Yes
IPsec
Yes
OpenVPN
Yes
Identity Endpoint One-Click VPN
Yes
Teleport Zero-Configuration VPN
Yes
WireGuard
Yes
L2TP
Yes

Networking

Multi-WAN Load Balancing
Yes
Shadow Mode (VRRP) High Availability
Yes
LACP Port Aggregation
Yes
OSPF
Yes
BGP
Yes
Advanced QoS
Yes
Multicast DNS (mDNS)
Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
Yes
Integrated RADIUS Server
Yes
RADIUS over TLS (RadSec)
Yes
Additional Internet Failover with LTE Backup
Yes
Internet Quality and Outage Reporting
Yes
MAC Address Table Size
130,000
Policy-based WAN and VPN Routing
Yes
Customizable DHCP Server
Yes
IPv6 ISP Support
Yes
IGMP Proxy
Yes
All Traffic Flows
Yes

Hardware

Max. Power Consumption
171W
Power Method
Universal AC input, 100–240V AC, 7.5A Max., 50/60 Hz
Power Supply
(2) Hot-Swappable AC/DC 550W PSU
Supported Voltage Range
100–240V AC
Heat Dissipation
585 BTU/hr
Processor
24-core ARM® v9 at 2.5 GHz
System Memory
32 GB
On-board Storage
Integrated 128 GB SSD
Weight
7.85 kg (17.31 lb)
Enclosure Material
Aluminum CNC, SGCC steel
LCM Display
1.3" touchscreen
Management
Ethernet
Bluetooth
Ethernet
Yes
SFP28
Yes
QSFP28
Yes
Swappable Fan
Yes
CRPS
Yes
Button
(1) Factory reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
CE, FCC, IC

Software

Mobile App
iOS™: Version 10.35.0 and later
Android™: Version 10.38.1 and later

↑ Back to top · View offerings

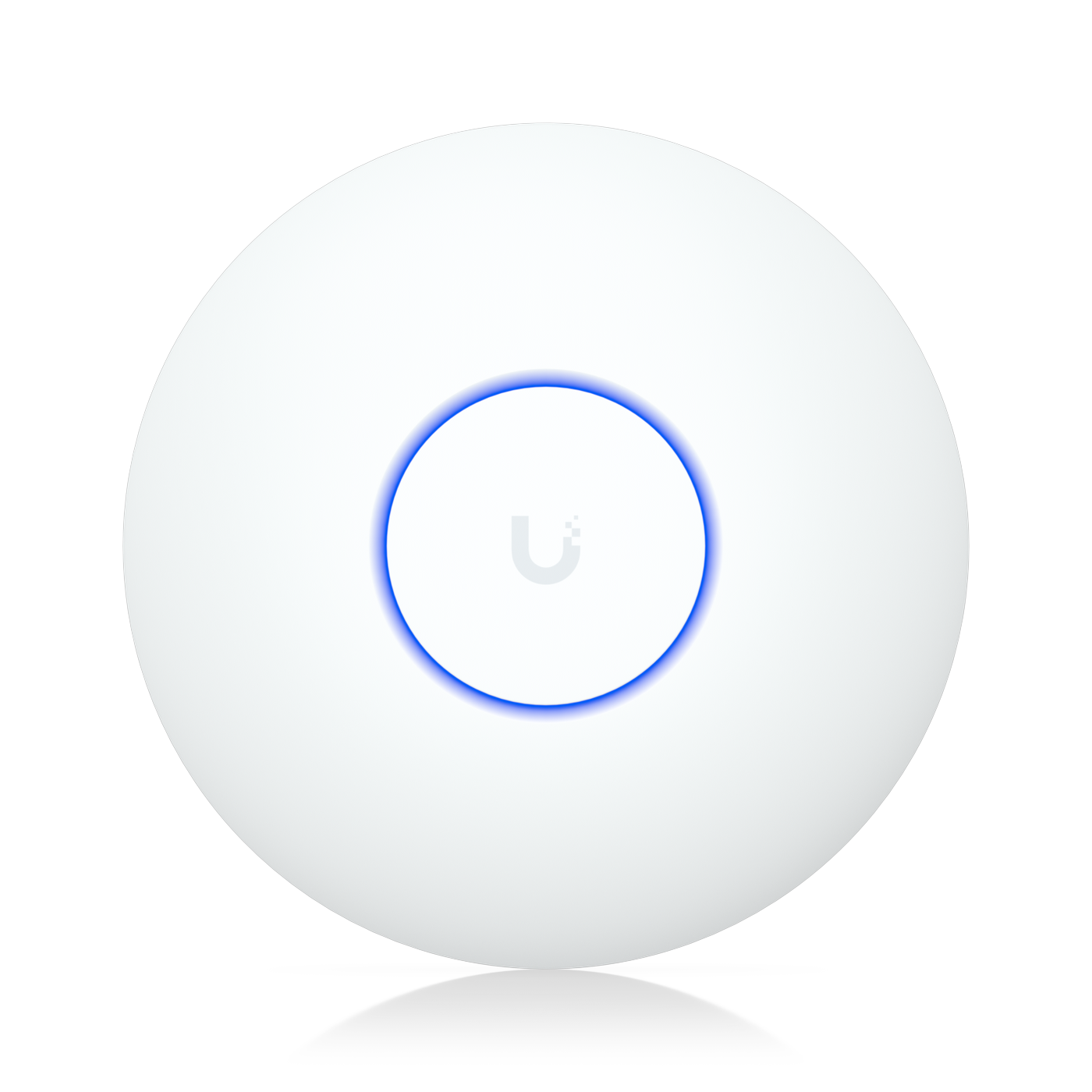

U7 Lite

Indoor Wi‑Fi

U7 Lite

U7-Lite · Ceiling / wall access point

Compact ceiling-mounted Wi‑Fi 7 access point with 4 spatial streams and a 2.5 GbE uplink — sized for branches, retail floors, and professional offices. Add any quantity per site with your chosen DynaLake gateway.

Specs summarized for DynaLake offerings. Hardware capabilities are manufacturer-published; RF design, channel planning, and AP density are configured by DynaLake.

Overview

Dimensions
⌀171.5 × 33 mm
(⌀6.8 × 1.3")
Wi‑Fi standard
Wi‑Fi 7 (802.11be)
Radios
Dual-radio 2.4 / 5 GHz
Spatial streams
4 (2×2 + 2×2)
Coverage area
115 m² (1,250 ft²)
Max. client count
200+
Uplink
2.5 GbE RJ45
Mounting
Ceiling, wall
(Lite mount included)
Power method
PoE

Performance

5 GHz MIMO
2 × 2 (DL/UL MU-MIMO)
2.4 GHz MIMO
2 × 2 (DL/UL MU-MIMO)
Max. data rate (5 GHz)
4.3 Gbps (BW240)
Max. data rate (2.4 GHz)
688 Mbps (BW40)
Antenna gain (5 GHz)
5 dBi
Antenna gain (2.4 GHz)
4 dBi
Max. TX power (5 GHz)
24 dBm
Max. TX power (2.4 GHz)
23 dBm
Max. BSSIDs
8 per radio
Wi‑Fi 7 data rates
7.3 Mbps to 4.3 Gbps
(EHT 20/40/80/160/240)

Features

Wireless meshing
Yes
Band steering
Yes
802.11r fast roaming
Yes
802.11k RRM
Yes
802.11v BSS transition
Yes
Advanced radio management
Yes
Guest isolation / PPSK
Yes
Wi‑Fi speed limiting
Yes
Client device isolation
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS VLAN
Yes
Passpoint (Hotspot 2.0)
Yes

Hardware

Max. power consumption
13 W
Supported voltage
42.5–57 V DC
Networking interface
(1) 2.5 GbE RJ45
Weight
313 g (11 oz)
Management
Ethernet
Enclosure
UV-stabilized polycarbonate
Operating temperature
−30 to 40 °C (−22 to 104 °F)
Operating humidity
5 to 95% noncondensing
NDAA compliant
Yes
Certifications
CE, FCC, IC, SRRC

Software & deployment

Network application
Version 9.0.114 and later
Mobile app
iOS 10.20.2+ · Android 10.21.7+
Role in DynaLake packages
Indoor Wi‑Fi coverage on any gateway tier
Quantity
Any number per site (store configurator)
Combine with
U7 Outdoor · 5G Backup · Starlink

↑ Back to top · View Wi‑Fi offerings

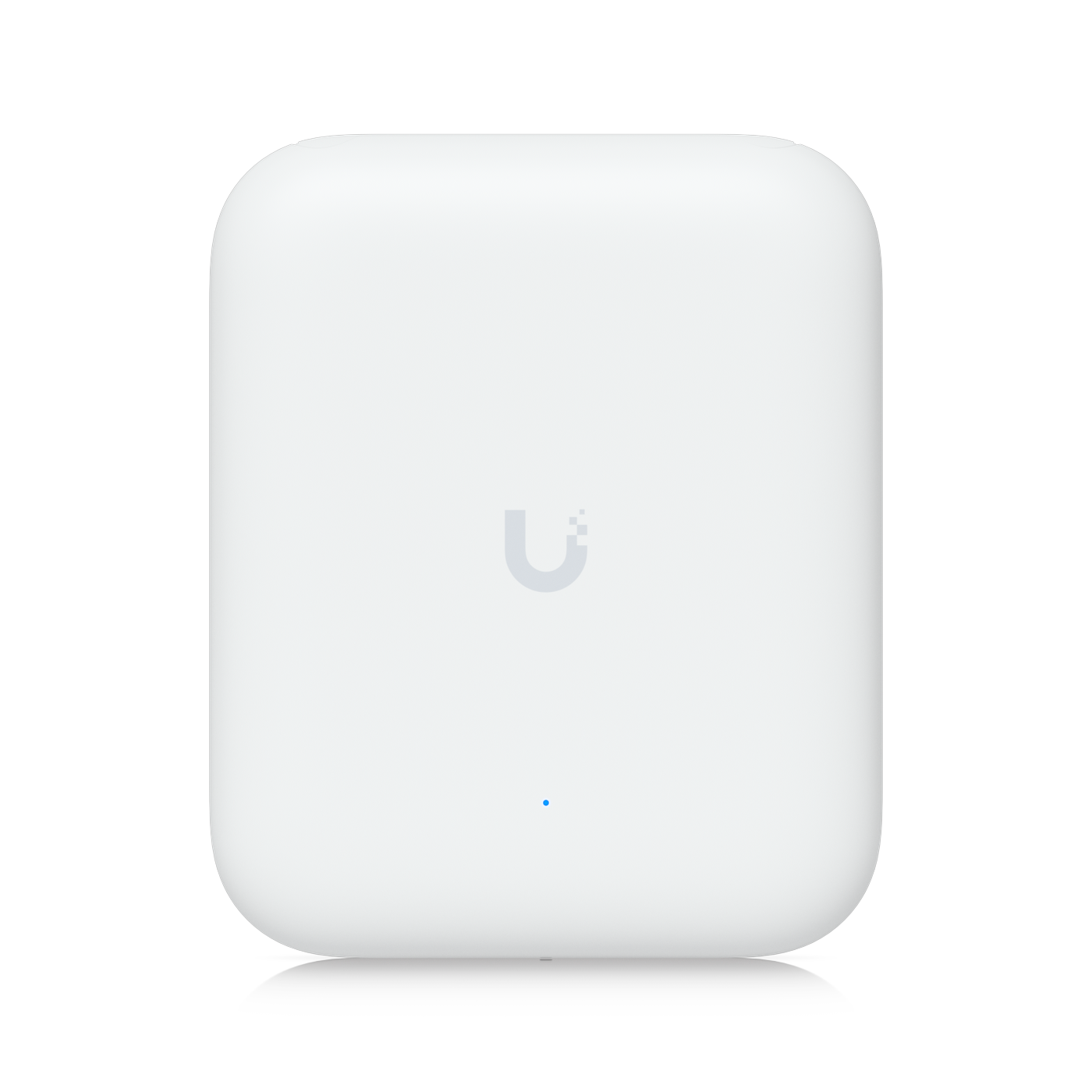

U7 Outdoor

Outdoor Wi‑Fi

U7 Outdoor

U7-Outdoor · All-weather access point

All-weather Wi‑Fi 7 access point with 4 spatial streams, an integrated directional super antenna, and external omni antennas for long-range outdoor coverage — wall or pole mount for yards, parking lots, and campus exteriors.

Specs summarized for DynaLake offerings. Hardware capabilities are manufacturer-published; outdoor RF design and mount placement are configured by DynaLake.

Overview

Dimensions
170 × 208 × 54.5 mm
(6.7 × 8.2 × 2.1")
Wi‑Fi standard
Wi‑Fi 7 (802.11be)
Radios
Dual-radio 2.4 / 5 GHz
Spatial streams
4 (2×2 + 2×2)
Coverage area
465 m² (5,000 ft²) open space
Max. client count
250+
Uplink
2.5 GbE RJ45
Mounting
Wall, pole
(mounts included)
Weatherproofing
IPX6
Power method
PoE+

Performance

5 GHz MIMO
2 × 2 (DL/UL MU-MIMO)
2.4 GHz MIMO
2 × 2 (DL/UL MU-MIMO)
Max. data rate (5 GHz)
4.3 Gbps (BW240)
Max. data rate (2.4 GHz)
688 Mbps (BW40)
Antenna gain (5 GHz)
Directional internal: 12.5 dBi, 45° × 45°
External omni: 4 dBi, 360° × 30°
Antenna gain (2.4 GHz)
Directional internal: 8 dBi, 90° × 90°
External omni: 3 dBi, 360° × 30°
Max. TX power (5 GHz)
26 dBm
Max. TX power (2.4 GHz)
23 dBm
Max. BSSIDs
8 per radio
Wi‑Fi 7 data rates
7.3 Mbps to 4.3 Gbps
(EHT 20/40/80/160/240)

Features

Wireless meshing
Yes
Band steering
Yes
802.11r fast roaming
Yes
802.11k RRM
Yes
802.11v BSS transition
Yes
Advanced radio management
Yes
Guest isolation / PPSK
Yes
Wi‑Fi speed limiting
Yes
Client device isolation
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS VLAN
Yes
Passpoint (Hotspot 2.0)
Yes

Hardware

Max. power consumption
19 W
Supported voltage
42.5–57 V DC
Networking interface
(1) 1/2.5 GbE RJ45
Weight
1.2 kg (2.6 lb)
Antennas
(1) Directional internal
(2) External omni
(2) RP-SMA for external antenna
Wind loading
74.6 N at 200 km/h
(16.8 lbf at 125 mph)
Pole mount diameter
1–2.36" (25–60 mm)
Enclosure
UV-stabilized polycarbonate, aluminum alloy
Operating temperature
−30 to 60 °C (−22 to 140 °F)
Operating humidity
5 to 95% noncondensing
NDAA compliant
Yes
Certifications
CE, FCC, IC

Software & deployment

Network application
Version 8.2.93 and later
Role in DynaLake packages
Outdoor / extended-range Wi‑Fi on any gateway tier
Quantity
Any number per site (store configurator)
Typical use
Parking lots, yards, building exteriors, campus greens
Combine with
U7 Lite indoors · 5G Backup · Starlink

↑ Back to top · View Wi‑Fi offerings

5G Backup

5G backup

5G Backup

U5G · Cellular failover option

Native 5G/LTE backup path with dual SIM — automatic multi-WAN cutover when the primary circuit fails.

Specs summarized for DynaLake offerings. Hardware capabilities are manufacturer-published; package design and failover policy are configured by DynaLake.

Overview

Dimensions
Device: 200 x 38 x 20.2 mm
(7.9 x 1.5 x 0.8")
Table stand: 48.1 x 48 x 55.2 mm
(1.9 x 1.9 x 2.2")
Networking Interface
(1) GbE RJ45 port
5G RedCap and LTE
SIM
(1) Nano-SIM (4FF)
(1) eSIM
PoE Interface
(1) PoE input
Mounting
Desktop stand, wall, window mount (Included)

Mechanical

Weight
Device: 122 g (4.3 oz)
Stand: 138 g (4.9 oz)
Wall mount: 66 g (2.3 oz)
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Galvanized steel, silicone rubber

Hardware

Management
Ethernet
Category
5G RedCap
Frequency Bands
n2, n5, n7, n12, n13, n14, n25, n26, n30, n38, n41, n48, n66, n71, n77, n78
Max. TX Power
23 dBm
Frequency Bands
B2, B4, B5, B7, B12, B13, B14, B25, B26, B30, B38, B41, B42, B43, B48, B66, B71
Max. TX Power
HPUE power class 2: 26 dBm
5G SA
Downlink 220 Mbps / Uplink 120 Mbps
4G LTE
Downlink 195 Mbps / Uplink 100 Mbps
Type
(2) Embedded omni-directional cellular antennas
Power Method
PoE
Display
1.14" status display
Buttons
(1) Factory reset
Ambient Operating Temperature
0 to 40 °C (32 to 104 °F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
Yes
Certifications
FCC, IC, PTCRB, GCF, AT&T, T-Mobile

Software

Network application
Version 10.4.57 and later
Mobile App
iOS™ version 10.35.0 and later
Android™ version 10.38.2 and later

↑ Back to top · View offerings

Need help sizing a site?

Share store count, peak card volume, and existing circuits — we will map the right gateway tier, Wi‑Fi density, and backup mix.

hello@dynalake.net Back to offerings
